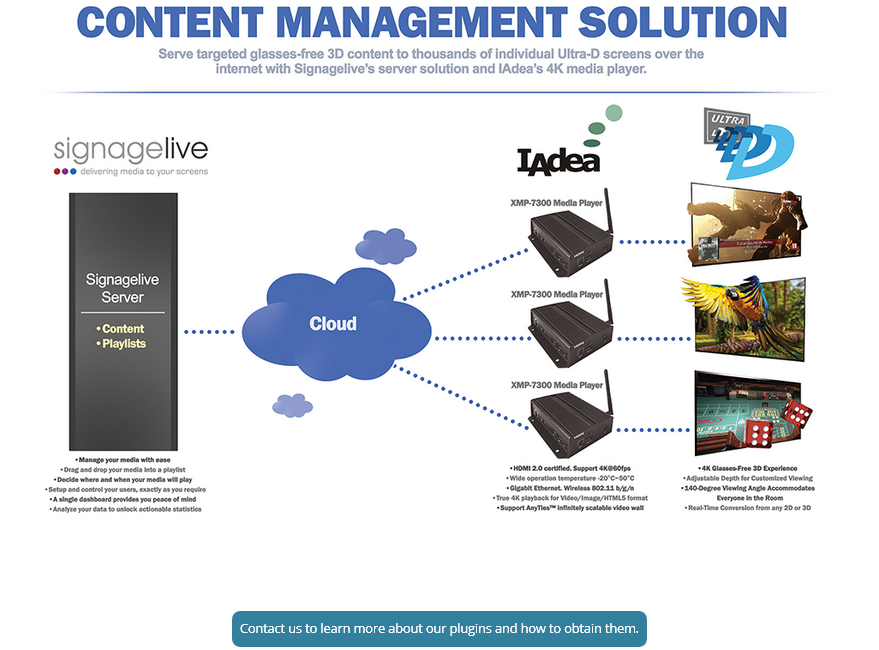

Concerned about how to manage this captivating new content across your network? We’ve teamed up with one of the world’s leading content management platforms and the maker of cutting-edge digital media players to offer a plug-and-play solution.Ultra-D displays are now compatible with the Signagelive cloud-based CMS and the XMP-7300 true 4K media player from IAdea for a robust system you can rely on.
Click Here or call 1 (416) 671 0223 to contact an IQH-3D™ sales representative. .
- Create 3D Film & TV Content
With both hardware and software tools being created for your broadcast and creative needs, it will be easy to curate and deploy Ultra-D content. Imagine how your content will look with a little more “pop”.
Interested in mastering your film and television projects in Ultra-D?
With our software plugins for After Effects and NUKE, you can do just that. If your masterpiece is destined for 3D at the cinema, you’ve probably already got disparity maps as a byproduct of your normal workflow. Just pull them into NUKE or After Effects along with one eye of your final picture and use the export plugin to make eye-popping Ultra-D masters for a global audience.
If you’re not already working in 3D, don’t worry, you’ve still got options. There are several off-the-shelf 2D-to-3D solutions available, as well as service providers with quality ranging from low end to IMAX resolution. We also offer conversion services as well (at very competitive rates) if you want one-stop shopping.But the beauty of Ultra-D – whether you convert the content yourself or use a third party conversion house – is that you don’t have to convert every frame. On average, you’ll need to convert only 1 keyframe out of every 10, saving you 90% on schedule and budget. We’re also working on a nearly real-time, fully automated seeCube Saver™ solution that will allow you to feed in 2D or 3D content and save Ultra-D formatted masters.
What about live events? If sports broadcasting, news or other live programming is your business, we’ve got just what you need if you want to control the content at source.The seeCube Pro™ is a rack-mountable hardware solution for use in OB vans, broadcast compounds and network operations centers. The HD-SDI inputs of this handy bit of equipment take in both the primary 2D/3D feed as well as a separate 2D/3D feed from the graphics generator, converting the primary feed into Ultra-D and compositing the graphics into a final Glasses-Free 3D output for distribution in real time.
We’re also exploring integration of our Ultra-D conversion function directly into the graphics packages used by major broadcasters… so stay tuned for future updates.
Click Here or call 1 (416) 671 0223 to contact an
IQH-3D™ sales representative. . - Create 3D Interactive Content
Do you make games or other interactive media?
If so, let us introduce you to the easiest revenue platform in the world. In as little as one hour of work, your project could be taking advantage of all that Ultra-D has to offer.
Integrating our SDK is a simple as a few clicks when you’re using our Unity or Unreal plugins, and it’s as simple as a few lines of code when you’re working directly with our graphics SDK. Integrate in hours – not months – and say goodbye to endless headaches associated with complicated, high-cost, highly-unknown platforms (yeah we’re looking at you VR).
Once you’ve implemented our plugins (or SDK), you will immediately start taking advantage of our revenue platform. A platform represented by a consumer demographic that’s filled with disposable income and a strong desire to have the latest and greatest. The sooner you partner with our marketing and distribution efforts, the sooner you’ll discover just how big 3D should’ve been. Contact us today for information on trial licenses and hardware support.
Do you make training simulators, visualizations, or other interactive products? We’ve got you covered too. Our Unity and Unreal plugins allow for seamless integration no matter how your end product looks (or feels). Even if you’re doing something outside the game engines entirely – that’s our specialty.
Click Here or call 1 (416) 671 0223 to contact an IQH-3D™ sales representative.
- Technology Overview
IQH-3D™ Displays powered by Ultra-D™
The Result is a Great Vewing Experience!
Ultra-D™ is the result of years of research and development in the field of 3D optical delivery. Ultra-D™ is a proprietary combination of hardware, middleware and software in perfect sync. It introduces a proprietary optical stack matched to the sub pixel level of the panel and adhered to the panel during the bonding process. The result is a state of the art display that allows the unassisted human eye to view live and recorded content in true 3D. No Glasses Required! The optical technology directs light from the sub-pixel level at an optimal angle to create a 3D image for the human eye
It’s like opening a window to a world that is just beyond reach. Behind the scenes, there is a vigorous play by a matrix of sophisticated software algorithms that scan incoming feeds to decipher the different layers that may be used to extrude and generate depth. Once identified, they are given depth that may be either user-defined or computer-generated and packaged into the Ultra-D™ format. All this happens in microseconds, keeping the video latency to levels that cannot be discerned by the human eye. This is what auto stereoscopic 3D or glasses free 3D should be.
The Workings
There are two parts to the Ultra-D™ process:Display
The Ultra-D™ Display integrates proprietary hardware, middleware and software. An underlying LCD, LED or OLED panel is combined with specially-designed optical layers that use refractive and diffractive technologies to create a 140-degree continuous light front. The resulting 3D Optical system is integrated with the middleware that instructs the display how to operate at a sub-pixel level. Software that decodes Ultra-D™ formatted content is the final element that completes the 3D Module.Content Conversion
The Ultra-D™ conversion is a proprietary process by which nearly any kind of content (Cable, Satellite, Blu-ray®, Xbox®, iTunes®, Apple TV®, Google TV®, YouTube®, Netflix®, iTunes®, Apple TV®, Google TV®, YouTube®, Netflix®, Xbox®, PS3®, etc.) available for input is being converted to the Ultra-D™ format via the Ultra-D SoC 4K for the new Ultra-D™ 2160p Displays.The World of Ultra-D™
Devices
Ultra-D™ technology is adaptable to panels of nearly any type and size. It is compatible with touch screen features as well. This means that consumers can have a seamless experience with virtually any device – televisions, tablets, smartphones, portable game players, laptops, all-in-one computers and more – with resolutions up to 2160p.
Content Delivery
Since conversion into Ultra-D™ format and 3D rendering are done locally, content owners do not need to convert their original programs to our glasses-free 3D format, nor will distributors need to invest in additional bandwidth to deliver high-resolution content. The existing infrastructure can take full advantage of benefits offered by the Ultra-D™ format.D ™.Click Here or call 1 (416) 671 0223 to contact an IQH-3D™ sales representative.
Ultra-D™ 2160p

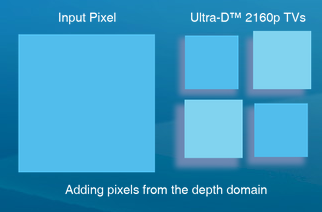

160p (Ultra High Definition) panels consist of 4K x 2K active pixels or precisely 38402160 pixels in a panel with a 16:9 aspect ratio. This translates into 8.3 million pixels that project an image as opposed to a 1080p (HD) panel with 1920 x 1080 pixels or 2 million pixels. This groundbreaking technology provides a true auto-stereoscopic (3D without glasses) viewing experience in 2160p resolution when viewing stereoscopic (3D with glasses) or two-dimensional HD 1080p resolution content. A proprietary software algorithm in the Ultra-D SoC 4K conversion hardware takes the original 1080p input signal and creates new pixel information from the depth domain, unlike the simple pixel multiplication and stretching done by scalers that other companies use.
This new pixel data is then processed as a 2160p auto-stereoscopic signal by a proprietary rendering chip, which results in an ultra high definition glasses-free 3D view on the Ultra-D™ 2160p powered display. The conversion hardware is significant for two reasons: (1) it can convert both 2D and 3D with glasses content into 2160p glasses-free 3D in real time and (2) the viewing experience is fully user adjustable. You can customize your 3D experience to your liking!
- The Optical System

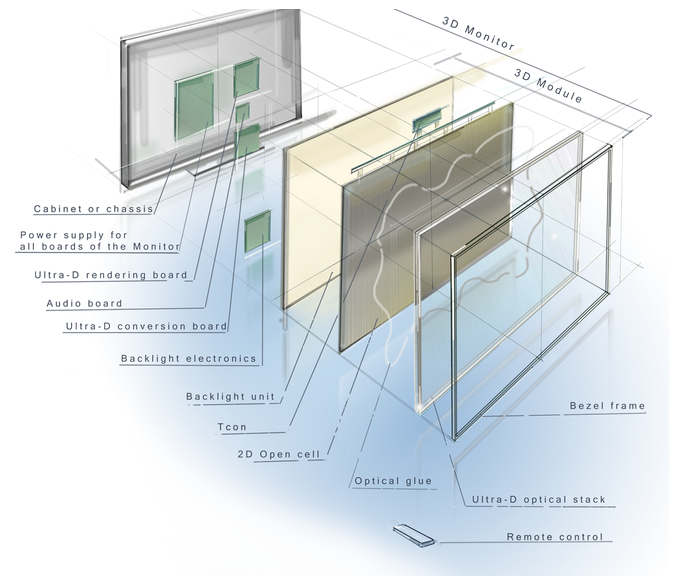

The Ultra-D optical system is a stack of layers of refractive and diffractive optical elements bonded to a liquid-crystal display. Optical system – 3D hardware including firmware allows:
- Glasses-free experience
- High quality 3D
- Full contrast and brightness
- True color reproduction
The technology can be applied in flat panel products ranging from displays as small as 4 inches to the largest mass-produced displays of 84 inches. Consequently, the Ultra-D technology can be integrated on smart phones, tablets, PC’s, picture frames etc.
How does it work?
The light of individual sub-pixels is directed from the screen and projected into space; it generates virtual pixels. Virtual pixels merge in the space and form a complete view for each eye of the viewer (see picture below). From that point the viewer’s brain takes over processing both views in the same natural way, as it is used to in the real world, creating a natural 3D experience.With the Ultra-D technology the viewing areas are repeated in a horizontal way and the transitions between these areas are made smooth. So, a viewing area is not divided in discrete views as is done in most other technologies, but the optical system creates an almost continuous light field in front of the screen.
Immersive Viewing Experience
The technology does not use special equipment as sensors for eye or head tracking. This means there is no limitation to the number of viewers and there is no fixed viewing position with respect to the screen. It allows the viewer to move freely in the range of recommended viewing angle of approximately 120 degrees and feel as if looking through a window to the world.Viewing Distance
The view configuration of the newest Ultra-D displays is such, that it allows the viewer to experience 3D from distances other than the optimal viewing distance. Moreover, even from a distance twice the optimal one the viewer still experiences 3D.The future development of the technology will allow the viewer to choose an optimal distance by adjusting settings with a remote control. However in the current implementation it has a fixed default factory setting, which depends on the application of the screen.

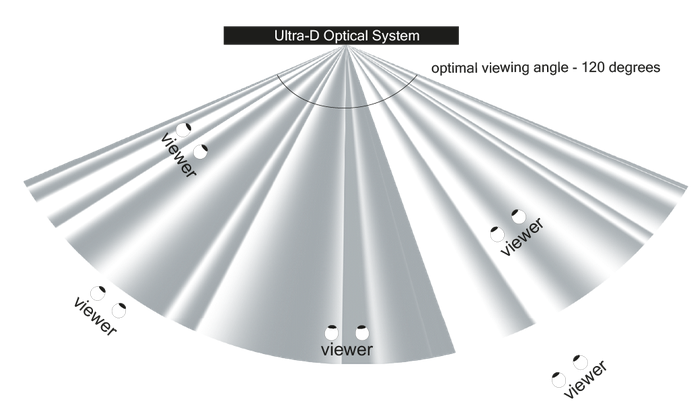

For comfortable viewing of a glasses-free 3D display, it is important to have a convenient viewing distance. The optimal viewing distance of the Ultra-D screens is rather flexible. It is directly related to a design choice and depends on the purpose of the display. Obviously for digital signage applications the 3D effect is expected to be visible from a distance of about 10m and closer. For the consumer market the recommended optimal distance is 3 m, where the size of an average living room is taken into account.Depth/ Pop
The depth of the screen and pop out of the Ultra-D display can be adjusted by the viewer by using the remote control while playing video.Other aspects
Commonly discussed challenges of 3D without glasses displays are: brightness of a screen, color reproduction and field/frame rate.
However, these factors are not affected by the Ultra-D optical system. They are dependent on the quality of the liquid-crystal panel used.
The Ultra-D optical system of IQH-3D™ displays provides different images to the two eyes of a viewer enabling a comfortable auto-stereoscopic glasses-free viewing experience.
